O-Band Bismuth-doped Fiber Amplifier
Amonics’ O-band Bismuth-doped fiber amplifier (BDFA) uses bismuth-doped fiber as the gain medium. The BDFA features high small signal gain and low noise figure. The silica-based Bismuth-doped fiber offers the similar fundamental advantages as erbium-doped fiber used for amplification in the C and L bands.
The turnkey microprocessor-controlled BDFAs provide illustrative alarms and status indicators. An integrated RS232 computer interface enables easy control, diagnostic functions and data acquisition.
O-Band BDFA (single channel) Specifications
| ABDFA-O-L-18 | ABDFA-O-L-21 | ABDFA-O-S-19 | |
|---|---|---|---|
| Operating Wavelength | 1290 nm to 1360 nm | 1290 nm to 1360 nm | 1270 nm to 1330 nm |
| Input Signal Level | -30 to 0 dBm | -30 to 0 dBm | -30 to 0 dBm |
| Saturation Output Power at 1310 nm, 0 dB input power | Min. 18 dBm | Min. 21 dBm | Min. 19 dBm |
| Noise Figure at 1310 nm, 0 dBm input power | Typ. 6.5 dB, Max. 7.0 dB | Typ. 6.5 dB, Max. 7.0 dB | Typ. 6.5 dB, Max. 7.0 dB |
| Small Signal Gain at 1310 nm, -30 dBm input power | Min. 23 dB | Min. 23 dB | Min. 22 dB |
| Input / Output Isolation | Min. 30 dB | Min. 30 dB | Min. 30 dB |
| Control Mode | ACC | ACC | ACC |

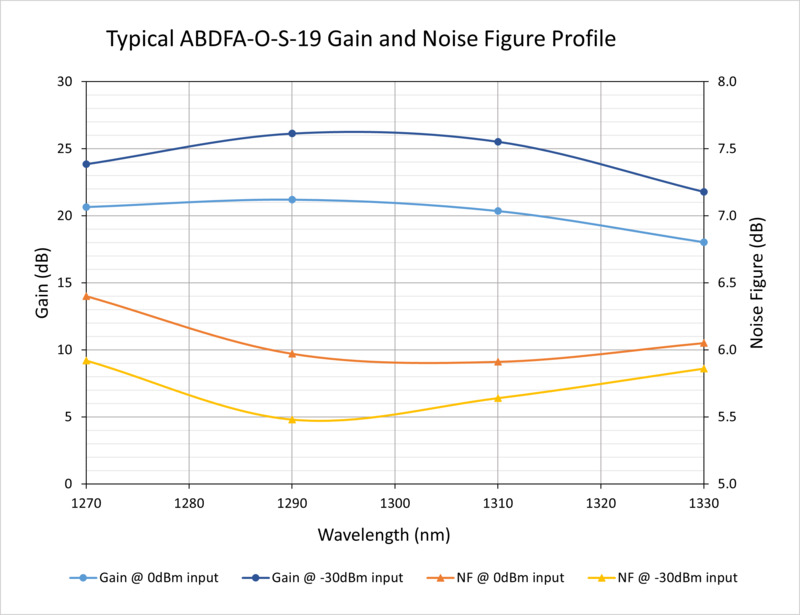

O-Band BDFA (multichannel) Specifications
| ABDFA-O-DWDM-19 | |
|---|---|
| Operating Wavelength | 1270 nm to 1330 nm |
| Composite Input Power | -30 to 0 dBm |
| Composite Output Power at 0 dBm composite input power | Min. 19 dBm |
| Noise Figure at 0 dBm composite input power | Typ. 6.5 dB, Max. 7.0 dB |
| Gain Flatness | Max. ±1.5 dB |
| Input / Output Isolation | Min. 30 dB |
| Control Mode | ACC |
General Parameters
| unit | value | |
|---|---|---|
| Operation Temperature | °C | 0 to 40 |
| Storage Temperature | °C | -10 to 70 |
| Power Supply | VAC | 90 – 240, 47 – 63Hz |
| Dimensions | mm | 485(W) x 515(D) x 90(H) mm or 485(W) x 360(D) x 90(H) mm [for ABDFA-O-S-19 and ABDFA-O-DWDM-19 only] |
| Mechanical Safety Control | Key-lock switch, BNC interlock key | |
| Optical Power Monitoring | Output power, Input power (optional) | |
| Remote Control Port | DB-9 female (RS232), Control software included RJ-45 (TCP/IP Ethernet) (optional) | |
| Optical Connector | FC/APC, FC/UPC, SC/APC, SC/UPC | |
| Optical Fiber | SMF-28 |
Ordering Information
| Product Code |
|---|
| ABDFA-O-L-aa-b-cc / ABDFA-O-S-aa-b-cc / ABDFA-O-DWDM-aa-b-cc |
| aa: Saturation output power or Composite output power in dBm |
| b: R for 19” Rackmount |
| cc: FA for FC/APC, FC for FC/UPC, SA for SC/APC, SC for SC/UPC |
Applications
Key Features
| High output power |
| Similar gain & noise figure as typical EDFA |
| Lower power consumption compared to conventional Raman amplifier |
| Distortion-free amplification |
