High Power EDFA
Amonics’ High Power EDFA series offer saturated output power from 0.5W to 20W. It is a standalone turnkey device, available in benchtop or rackmount casing.
The front panel includes a LCD monitor display, key switch, power adjust control knob, and fiber input and output adaptors. A RS232 computer interface is provided for control and monitoring. This EDFA is well suited for R&D in the fields of telecommunications, fiber optic sensing, and CATV applications.
Benchtop High Power EDFA Specifications
| AEDFA-27-B | AEDFA-30-B | AEDFA-33-B | |
|---|---|---|---|
| Saturation Output Power (at 0dBm input signal) | Min. +27 dBm | Min. +30 dBm | Min. +33 dBm |
| Input Signal Level | -6 to +3 dBm | -6 to +3 dBm | -6 to +3 dBm |

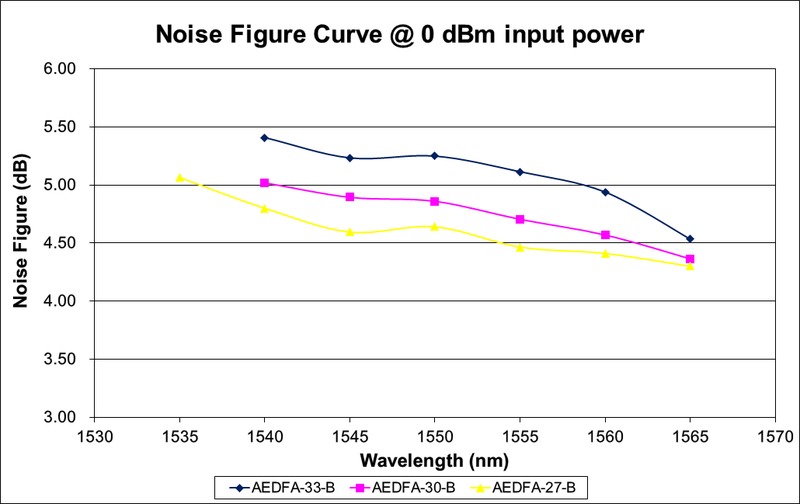

| Noise Figure (at 0dBm input signal) | Typ. 5.5 dB | Typ. 6.0 dB | Typ. 6.0 dB |
| Operating Wavelength | 1535 nm to 1565 nm | 1540 nm to 1565 nm | 1540 nm to 1565 nm |
| Input Isolation | Min. 30 dB | Min. 30 dB | Min. 30 dB |
| Output Isolation | Min. 30 dB | Min. 30 dB | Min. 30 dB |
| Polarization Dependent Gain | Typ. 0.3 dB, Max. 0.5 dB | Typ. 0.3 dB, Max. 0.5 dB | Typ. 0.3 dB, Max. 0.5 dB |
| Control Mode | ACC, APC, AGC (optional) | ACC, APC, AGC (optional) | ACC, APC, AGC (optional) |
L-Band or other output power models are available upon request
Rackmount High Power EDFA Specifications
| AEDFA-37-R | AEDFA-40-R | AEDFA-43-R | |
|---|---|---|---|
| Saturation Output Power | Min. +37 dBm (at +3 dBm input signal) | Min. +40 dBm (at +3 dBm input signal) | Min. +43 dBm (at +10 dBm input signal) |
| Input Signal Level | -6 to +13 dBm | -6 to +13 dBm | -6 to +13 dBm |
| Noise Figure | Typ. 6.0 dB (at +3 dBm input signal) | Typ. 6.5 dB (at +3 dBm input signal) | Typ. 8.5 dB (at +10 dBm input signal) |
| Operating Wavelength | 1545 nm to 1565 nm | 1545 nm to 1565 nm | 1550 nm to 1565 nm |
| Input Isolation | Min. 30 dB | Min. 30 dB | Min. 30 dB |
| Output Isolation | Min. 30 dB | Min. 30 dB | Min. 30 dB |
| Polarization Dependent Gain | Typ. 0.3 dB, Max. 0.5 dB | Typ. 0.3 dB, Max. 0.5 dB | Typ. 0.3 dB, Max. 0.5 dB |
| Control Mode | ACC, APC (optional) | ACC, APC (optional) | ACC, APC (optional) |
L-Band or other output power models are available upon request
General Parameters
| unit | value | |
|---|---|---|
| Operation Temperature | °C | 0 to 40 |
| Storage Temperature | °C | -10 to 70 |
| Power Supply | VAC | 90 – 240, 47 – 63Hz |
| Benchtop Dimensions | mm | 260(W) x 330(D) x 120(H) |
| 2U Rackmount Dimensions | mm | 485(W) x 515(D) x 90(H) or 485(W) x 360(D) x 90(H) for AEDFA-37-R |
| 3U Rackmount Dimensions | mm | 485(W) x 615(D) x 150(H) for AEDFA-40-R, AEDFA-43-R |
| Mechanical Safety Control | Key-lock switch, BNC interlock key | |
| Optical Power Monitoring | Output power, Input power (optional) | |
| Remote Control Port | DB-9 female (RS232), Control software included RJ-45 (TCP/IP Ethernet) (optional) | |
| Protection | Pump laser (TEC) overheat | |
| Optical Connector | FC/APC, FC/UPC, SC/APC, SC/UPC, Bare fiber | |
| Optical Fiber | SMF-28 |
Options
| Narrow bandpass filters |
Ordering Information
| Product Code |
|---|
| AEDFA-aa-b-cc |
| aa : Saturation output power in dBm |
| b : B for Benchtop, R for 19” Rackmount |
| cc : FA for FC/APC, FC for FC/UPC, SA for SC/APC, SC for SC/UPC, NC for bare fiber |
Key Features
| Turnkey device |
| RS232/Ethernet interface |
| High output power, up to 20W |
| High gain |
| Low noise figure |
| Highly reliable and durable |
