Nanosecond Fiber Laser
Amonics' nanosecond fiber lasers are with high pulse energy and excellent pulse energy stability. We offer nanosecond fibers with direct modulation diode seed lasers and narrow linewidth seed lasers with external modulation.By using our high power pulse amplifier, the laser with direction modulation can have higher than mJ output energy.By using our proprietary SBS suppression technique, our narrow linewidth nanosecond pulse laser can deliver over 180 uJ pulse energy.The applications of the nanosecond laser include laser marking, laser welding, material processing, and free spacing sensing.
Narrow linewidth Nanosecond Fiber Laser (external modulation) Specifications
| ANSFL-UL | ANSFL-PM-UL | |
|---|---|---|
| Operating wavelength* | 1550 nm ± 1 nm | 1550 nm ± 1 nm |

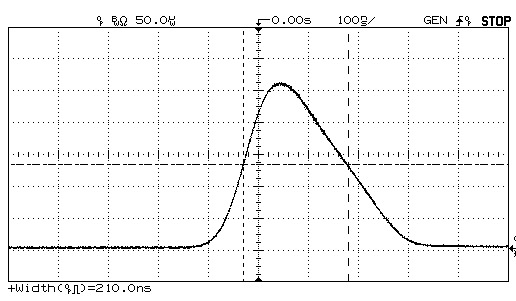

| Pulse Width | 100ns to 1000 ns | 100ns to 1000 ns |
| Pulse Repetition Rate | 20 kHz to 1 MHz | 20 kHz to 1 MHz |
| Saturated Output Power up to | +2 W | +2 W |
| Pulse peak power up to (No SBS) | 500 W | 500 W |
| Linewidth | Typ. 15 kHz to 200 kHz | Typ. 15 kHz to 200 kHz |
| Output isolation | Min. 30 dB | Min. 30 dB |
| Polarization Extinction Ratio | NA | Typ. 23 dB, Min. 20 dB |
| Optical Fiber | LMA 25/300 GDF | PM LMA 25/300 GDF |
* *Different wavelength or other output power models are available upon request
Nano-second Pulse Width Fiber Laser (direct modulation) Specifications
| ANSFL | ANSFL-PM | ANSFL-10 | ANSFL-PM-10 | |
|---|---|---|---|---|
| Operating wavelength* | 1550 nm ± 1 nm | 1550 nm ± 1 nm | 1550 nm ± 1 nm | 1550 nm ± 1 nm |
| Pulse Width | Typ. 10 ns to 1000 ns | Typ. 10 ns to 1000 ns | Typ. 5 ns to 10 ns | Typ. 5 ns to 10 ns |
| Pulse Repetition Rate | Typ. 20 kHz to 1 MHz | Typ. 20 kHz to 1 MHz | Typ. 100 kHz to 10 MHz | Typ. 100 kHz to 10 MHz |
| Saturated Output Power up to | +2 W | +2 W | +10 W | +10 W |
| Pulse peak power up to (No SBS) | +1 kW | +1 kW | +10 kW | +10 kW |
| Linewidth | Typ. 0.2 nm | Typ. 0.2 nm | Typ. 0.2 nm | Typ. 0.2 nm |
| Output isolation | Min. 30 dB | Min. 30 dB | Min. 30 dB | Min. 30 dB |
| Polarization Extinction Ratio | NA | Typ. 23 dB, Min. 20 dB | NA | Typ. 20 dB, Min. 18 dB |
| Optical Fiber | SMF-28 | PM 1550 Panda Fiber | LMA 25/300 GDF | PM LMA 25/300 GDF |
* *Different wavelength or other output power models are available upon request
General Parameters
| unit | value | |
|---|---|---|
| Operation Temperature | °C | 0 to +40 |
| Storage Temperature | °C | -10 to +70 |
| Power Supply | VAC | 90 – 240, 47 – 63Hz |
| 2U Rackmount Dimensions | mm | 485(W) x 515(D) x 90(H) or 485(W) x 360(D) x 90(H) |
| 3U Rackmount Dimensions | mm | 485(W) x 615(D) x 150(H) |
| Control | Keylock switch, Pump laser current | |
| LCD Display | Output power, Pump laser current, Input power (Optional) | |
| Computer Interface | RS232 (Control software & connection cable included) / Ethernet (Optional) | |
| Protection | Pump laser overheat warning | |
| Optical Connector | FC/APC, collimator or bare fiber (No output connectors for output power >2W) |
Ordering Information
| Product Code |
|---|
| ANSFL(-PM)(-UL)-aaa-bb-cc-R-dd |
| aaa : Pulse Width in ns |
| bb: Repetition Rate in kHz |
| cc: Average Output Power in dBm |
| dd: FA for FC/APC, FC for FC/UPC, SA for SC/APC, SC for SC/UPC, CL for collimator, NC for bare fiber |
Applications
Key Features
| High output power |
| High gain |
| Wide operation range |
| Highly reliable and durable |
