CWDM Super-Wideband Light Source
Amonics ALSD-CWDM super-wideband light source provides high spectral density, at above -30dBm/nm, across 1250nm to 1650nm. It is an ideal tool for simple characterization of CWDM components and communication links. This broadband source is also extremely effective in high resolution optical coherent tomography (OCT) applications.
The benchtop super-wideband light source incorporates a user-friendly front panel housing with a LCD monitor display, key switch, power control knob and optical connectors. RS232 or Ethernet computer interface is also equipped.
Specifications
| ASLD-CWDM | ASLD-CWDM-EX | |
|---|---|---|
| Output Power | Min. 10 mW | Min. 10 mW |

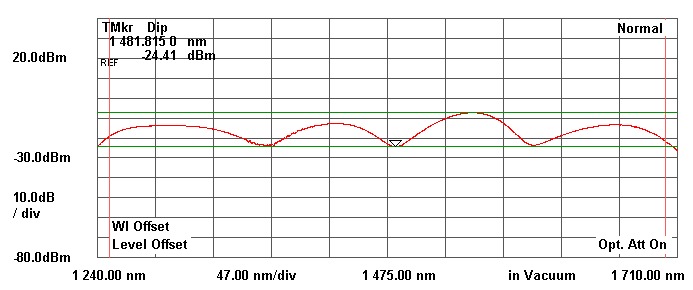

| Spectral Range | 1250 nm to 1650 nm | 1250 nm to 1700 nm |
| Min. Spectral Density | -30 dBm/nm | -30 dBm/nm |
| Output Stability | Max. ±0.02 dB (over 8hrs), Max. ±0.005 dB (over 5mins) | Max. ±0.02 dB (over 8hrs), Max. ±0.005 dB (over 5mins) |
General Parameters
| unit | value | |
|---|---|---|
| Operation Temperature | °C | 0 to +40 |
| Storage Temperature | °C | -10 to +70 |
| Power Supply | VAC | 90 – 240, 47 – 63Hz |
| Dimensions | mm | 260(W) x 330(D) x 120(H) |
| Protection | Pump laser (TEC) overheat | |
| Optical Power Monitoring | Output power | |
| Mechanical Safety Control | Key-lock switch, BNC interlock key | |
| Remote Control Port | RS232 / Ethernet | |
| Optical Connector | FC/APC, FC/UPC, SC/APC, SC/UPC | |
| Optical Fiber | SMF-28 or PM 1550 |
Options
| Output Isolation |
| Linear Polarization |
Ordering Information
| Product Code |
|---|
| ASLD(-PM)-CWDM(-EX)-4/5-a-bb |
| a: M for Module, B for Benchtop |
| bb: FA for FC/APC, FC for FC/UPC, SA for SC/APC, SC for SC/UPC |
| E.g. ASLD-CWDM-5-B-FA or ASLD-PM-CWDM-EX-4-B-FA |
Applications
Key Features
| Wide spectral range >400nm |
| High output power |
| Good spectral stability |
| Compact |
| Good performance cost ratio |
| Highly reliable and durable |
